Product Summary
The AOD604 uses advanced trench technology MOSFETs to provide excellent RDS(ON) and low gate charge. The
complementary MOSFETs may be used in H-bridge, Inverters and other applications. Standard product AOD604 is Pbfree (meets ROHS & Sony 259 specifications).
AOD604L is a Green Product ordering option. AOD604 and AOD604L are electrically identical.
Parametrics
Absolute Maximum Ratings (TA=25℃ unless otherwise noted)
- Drain-Source Voltage:-40 to +40V
- Gate-Source Voltage:±20V
- Continuous Drain Current:8A
- Pulsed Drain Current:-30 to +30A
- Avalanche Current :-8 to +8A
- Repetitive avalanche energy L=0.1m:20mJ to 30mJ
- Power Dissipation,Tc=25℃:20W to 50W;Tc=100℃:10W to 25W
- Power Dissipation,Ta=25℃:2W to 2.5W;Ta=1.3W to 1.60W
- Junction and Storage Temperature Range:-55℃ to 175℃
Features
1.n-channel 2. p-channel
VDS (V) = 40V -40V
ID = 8A (VGS=10V) -8A (VGS = -10V)
RDS(ON) RDS(ON)
< 33 mΩ (VGS=10V) < 50 mΩ (VGS = -10V)
< 47 mΩ (VGS=4.5V) < 70 mΩ (VGS = -4.5V)
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

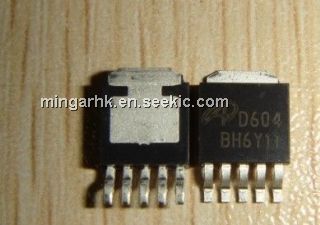

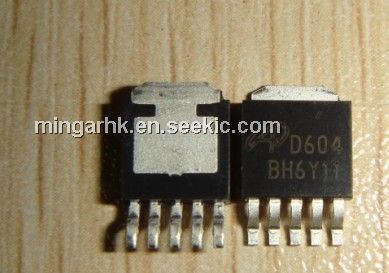

 AOD604 |
|
MOSFET N/P-CH COMPL 40V TO252-5 |
Data Sheet |
Negotiable |
|
||||||
