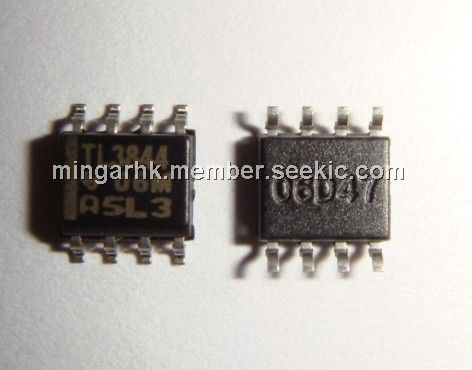

Product Summary
The TL284x and TL384x series of controlintegrated circuits provide the features that arenecessary to implement off-line or dc-to-dc fixed-frequency current-mode control schemes with a minimumnumber of external components. Some of the internally implemented circuits are an undervoltage lockout(UVLO), featuring a start-up current of less than 1 mA, and a precision reference trimmed for accuracy at theerror amplifier input. Other internal circuits include logic to ensure latched operation, a pulse-width modulation(PWM) comparator (which also provides current-limit control), and a totem-pole output stage designed to sourceor sink high-peak current. The output stage, suitable for driving N-channel MOSFETs, is low when it is in theoff state.
Parametrics
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)?:
(1)Supply voltage (see Note 1) (ICC < 30 mA):Self limiting; (2)Analog input voltage range, VI (VFB and ISENSE):-0.3 V to 6.3V; (3)Output voltage, VO (OUTPUT):35 V; (4)Input voltage, VI, (VC, D package only):35 V; (5)Supply current, ICC:30 mA; (6)Output current, IO:±1 A; (7)Error amplifier output sink current:10 mA; (8)Package thermal impedance,θJA (see Notes 2 and 3): D package:86℃/W; (9)Virtual junction temperature range, TJ:0℃ to 150℃; (10)Output energy (capacitive load):5μJ; (11)Lead temperature, 1,6 mm (1/16 inch) from case for 10 seconds:260℃; (12)Storage temperature range, Tstg:-65℃ to 150℃
Features
(1)Optimized for Off-Line and dc-to-dc Converters; (2)Low Start-Up Current (<1 mA); (3)Automatic Feed-Forward Compensation; (4)Pulse-by-Pulse Current Limiting; (5)Enhanced Load-Response Characteristics; (6)Undervoltage Lockout With Hysteresis; (7)Double-Pulse Suppression; (8)High-Current Totem-Pole Output; (9)Internally Trimmed Bandgap Reference; (10)500-kHz Operation; (11)Error Amplifier With Low Output Resistance; (12)Designed to Be Interchangeable With UC2842 and UC3842 Series
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201272431744366.jpg">
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TL3844D-8 |
Texas Instruments |
Current Mode PWM Controllers Current-Mode PWM Controller |
Data Sheet |
|
|
|||||||||||||
TL3844DRG4-8 |
Texas Instruments |
Current Mode PWM Controllers Current-Mode PWM Controller |
Data Sheet |
|
|
|||||||||||||
TL3844DRG4 |
Texas Instruments |
Current Mode PWM Controllers Current-Mode PWM Controller |
Data Sheet |
|
|
|||||||||||||
TL3844DRE4-8 |
Texas Instruments |
Current Mode PWM Controllers Current-Mode PWM Controller |
Data Sheet |
|
|
|||||||||||||
TL3844DRE4 |
Texas Instruments |
Current Mode PWM Controllers Current-Mode PWM Controller |
Data Sheet |
|
|
|||||||||||||
TL3844DR-8 |
Texas Instruments |
Current Mode PWM Controllers Current Mode PWM |
Data Sheet |
|
|
|||||||||||||
TL3844DR |
Texas Instruments |
Current Mode PWM Controllers Current-Mode PWM Controller |
Data Sheet |
|
|
|||||||||||||
TL3844DG4-8 |
Texas Instruments |
Current Mode PWM Controllers Current-Mode PWM Controller |
Data Sheet |
|
|
