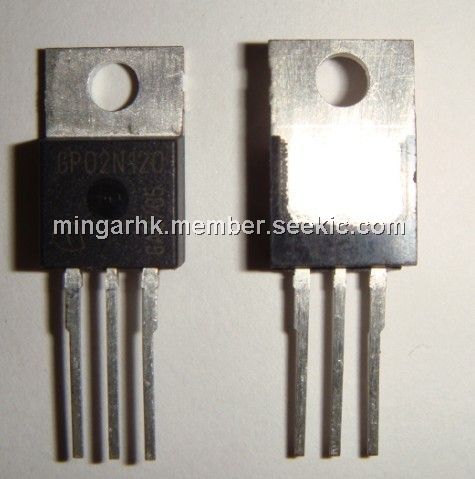

Product Summary

Parametrics

Maximum Ratings:
(1)Collector-emitter voltage,VCE:1200V;
(2)DC collector current,TC = 25℃:6.2A;TC = 100℃:2.8A;
(3)Pulsed collector current, tp limited by Tjmax,I Cpuls:9.6A;
(4)Turn off safe operating area,VCE≤ 1200V, Tj≤ 150°C:9.6A;
(5)Gate-emitter voltage,VGE:±20V;
(6)Avalanche energy, single pulse,IC = 2A, VCC = 50V, RGE = 25Ω, start at Tj = 25℃,EAS:10mJ;
(7)Short circuit withstand time1),VGE = 15V, 100V≤ VCC≤ 1200V, Tj≤ 150℃,tSC:10μs;
(8)Power dissipation,TC=25℃,Ptot:62W;
(9)Operating junction and storage temperature,Tj , Tstg:-55℃ to +150℃;
(10)Soldering temperature, 1.6mm (0.063 in.) from case for 10s:260℃

Features

(1)40% lower Eoff compared to previous generation;
(2)Short circuit withstand time – 10 μs;
(3)Designed for:Motor controls;Inverter;SMPS;
(4)NPT-Technology offers:very tight parameter distribution;high ruggedness, temperature stable behaviour;parallel switching capability

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/201273023485537.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SGP02N120
SGP02N120
Infineon Technologies
IGBT Transistors FAST IGBT NPT TECH 1200V 2A
Data Sheet
0-1: $0.95
1-10: $0.79
10-100: $0.71
100-250: $0.62
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SGP02N120
SGP02N120
Infineon Technologies
IGBT Transistors FAST IGBT NPT TECH 1200V 2A
Data Sheet
0-1: $0.95
1-10: $0.79
10-100: $0.71
100-250: $0.62
SGP02N60
SGP02N60
Infineon Technologies
IGBT Transistors FAST IGBT NPT TECH 600V 2A
Data Sheet
0-1: $1.13
1-10: $1.01
10-100: $0.80
100-500: $0.62
SGP04N60
SGP04N60
Infineon Technologies
IGBT Transistors FAST IGBT NPT TECH 600V 4A
Data Sheet
0-1: $1.29
1-10: $1.11
10-100: $0.83
100-500: $0.65
SGP06N60
SGP06N60
Infineon Technologies
IGBT Transistors FAST IGBT NPT TECH 600V 6A
Data Sheet
0-1: $1.49
1-10: $1.28
10-100: $0.96
100-500: $0.74
SGP07N120
SGP07N120
Infineon Technologies
IGBT Transistors FAST IGBT NPT TECH 1200V 8A
Data Sheet
0-245: $1.40
245-500: $1.13
500-1000: $0.96
1000-2000: $0.91
