Product Summary

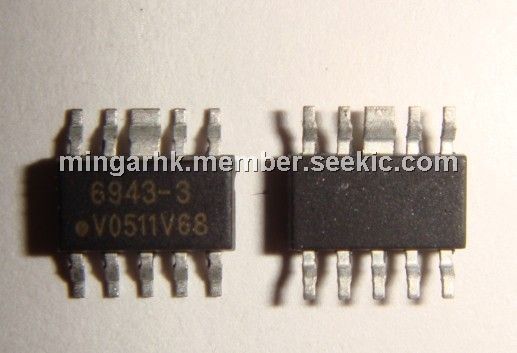

The SFH6943 is a four channel mini-optocoupler suit-able for high density packaged PCB application. Ithas a minimum of 1768 VRMS isolation from input to output. The device consists of four phototransistorsas detectors. Each channel is individually controlled.The optocoupler is housed in a SOT223/10 package.All the cathodes of the input LEDs and all the collec-tors of the output transistors are common enabling apin count reduction from 16 pins to 10 pins-a signifi-cant space savings as compared to four channels thatare electrically isolated individually.
Parametrics
Absolute Maximum Ratings
Tamb = 25℃, unless otherwise specified.
Stresses in excess of the absolute Maximum Ratings can cause permanent damage to the device. Functional operation of the device isnot implied at these or any other conditions in excess of those given in the operational sections of this document. Exposure to absoluteMaximum Rating for extended periods of the time can adversely affect reliability.
Features
(1)Transistor Optocoupler in SOT223/10 Package;
(2)End Stackable, 1.27 mm Spacing;
(3)Low Current Input;
(4)Very High CTR, 150 % Typical at IF = 1 mA,VCE = 5 V;
(5)Good CTR Linearity Versus Forward Current;
(6)Minor CTR Degradation;
(7)High Collector-Emitter Voltage, VCEO=70 V;
(8)Low Coupling Capacitance;
(9)High Common Mode Transient Immunity;
(10) Isolation Test Voltage: 1768 VRMS
Diagrams
