Product Summary

Parametrics

MAXIMUM RATINGS:(1)DC Supply Voltage (Referenced to GND):-0.5 to +7.0V; (2)DC Input Voltage (Referenced to GND):-0.5 to VCC+0.5V; (3)DC Output Voltage (Referenced to GND):-0.5 to VCC+0.5V; (4)DC Input Current, per Pin:±20mA; (5)DC Output Sink/Source Current, per Pin:±50mA; (6)DC VCC or GND Current per Output Pin:±50mA; (7)Storage TemperatureTstg:-65℃ to +150℃

Features

(1)Outputs Source/Sink 24 mA; (2) 'ACT32 Has TTL Compatible Inputs; (3)Pb-Free Packages are Available

Diagrams

<P><IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/2012724111944.jpg"></P>

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

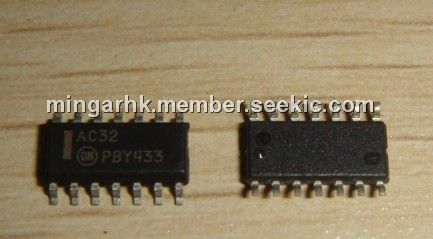

MC74AC32DR2
MC74AC32DR2

IC GATE OR QUAD 2INPUT 14SOIC
Data Sheet
0-1: $0.28
1-25: $0.22
25-100: $0.16
100-250: $0.13
250-500: $0.10
500-1000: $0.09
MC74AC32DR2G
MC74AC32DR2G
ON Semiconductor
Gates (AND / NAND / OR / NOR) 2-6V Quad 2-Input OR
Data Sheet
0-1: $0.26
1-25: $0.20
25-100: $0.17
100-500: $0.12
