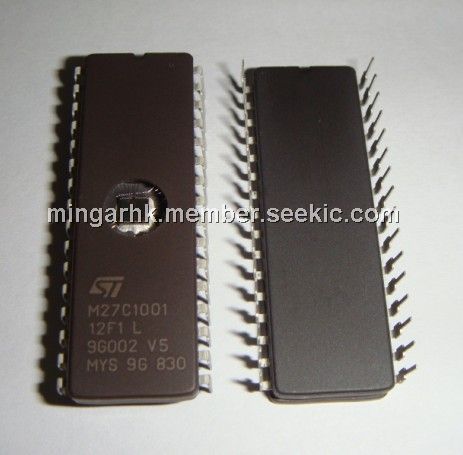

M27C1001-12F1L

Product Summary

The M27C1001 is a 1 Mbit EPROM offered in thetwo ranges UV (ultra violet erase) and OTP (onetime programmable). It is ideally suited for micro-processor systems requiring large programs andis organized as 131,072 words of 8 bits.The FDIP32W (window ceramic frit-seal package)and the LCCC32W (leadless chip carrier package)have a transparent lids which allow the user to ex-pose the chip to ultraviolet light to erase the bit pat-tern. A new pattern can then be written to thedevice by following the programming procedure.For applications where the content is programmedonly one time and erasure is not required, theM27C1001 is offered in PDIP32, PLCC32 andTSOP32 (8 x 20 mm) packages.

Parametrics

Absolute Maximum Ratings (Note1):
(1)TA,Ambient Operating Temperature (note3):-40 to 125℃;
(2)TBIAS,Temperature Under Bias:-50 to 125℃;
(3)TSTG,Storage Temperature:-65 to 150℃;
(4)VIO(note2),Input or Output Voltage (except A9):-2 to 7V;
(5)Vcc,Supply Voltage:-2 to 7V;
(6)VA9(note2),A9 Voltage:-2 to 13.5V;
(7)VPP,Program Supply Voltage:-2 to 14V
Note:
1. Except for the rating "Operating Temperature Range", stresses above those listed in the Table "Absolute Maximum Ratings" maycause permanent damage to the device. These are stress ratings only and operation of the device at these or any other conditionsabove those indicated in the Operating sections of this specification is not implied. Exposure to Absolute Maximum Rating condi-tions for extended periods may affect device reliability. Refer also to the STMicroelectronics SURE Program and other relevant qual-ity documents.
2. Minimum DC voltage on Input or Output is –0.5V with possible undershoot to –2.0V for a period less than 20ns. Maximum DCvoltage on Output is VCC +0.5V with possible overshoot to VCC +2V for a period less than 20ns.
3. Depends on range

Features

(1)5V ± 10% SUPPLY VOLTAGE in READ OPERATION;
(2)ACCESS TIME: 35ns;
(3)LOW POWER CONSUMPTION:Active Current 30mA at 5Mhz;Standby Current 100μA;
(4)PROGRAMMING VOLTAGE: 12.75V ± 0.25V;
(5)PROGRAMMING TIME: 100μs/word;
(6)ELECTRONIC SIGNATURE:Manufacturer Code: 20h;Device Code: 05h
