Product Summary

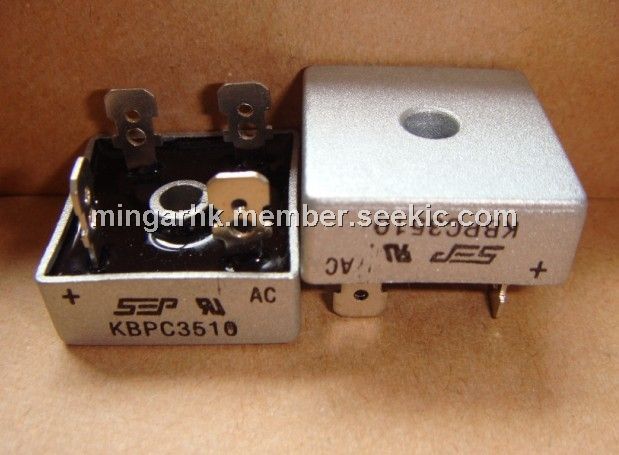

Mechanical Data:
(1)Case: Metal Case with Electrically Isolated Epoxy;
(2)Terminals: Plated Leads Solderable per MIL-STD-202, Method 208;
(3)Polarity: Symbols Marked on Case;
(4)Mounting: Through Hole for #10 Screw;
(5)Weight: KBPC 31.6 grams (approx.);KBPC-W 28.5 grams (approx.);
(6)Marking: Type Number
Parametrics
Maximum Ratings,TA=25℃ unless otherwise specified:
(1)Typical Junction Capacitance (per element)(Note 2),Cj :300 pF;
(2)Typical Thermal Resistance Junction to Case (per element) (Note 3):2.7K/W;
(3)RMS Isolation Voltage from Case to Lead, VISO :2500 V;
(4)Operating and Storage Temperature Range, Tj, TSTG: -65 to +150℃
Note:
1. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
2. Thermal resistance junction to case mounted on heatsink.
Features
(1)Diffused Junction;
(2)Low Reverse Leakage Current;
(3)Low Power Loss, High Efficiency;
(4)Electrically Isolated Metal Case for Maximum Heat Dissipation ;
(5)Case to Terminal Isolation Voltage 2500V ;
(6)UL Recognized File # E157705
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20128623412545.jpg">
