Product Summary

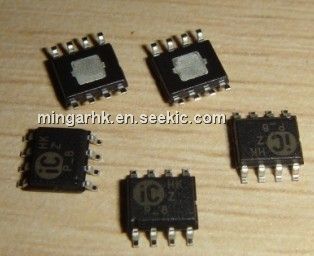

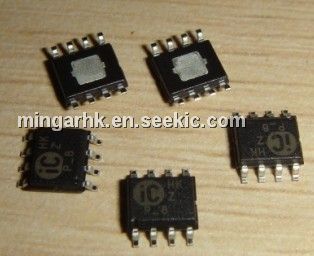

IC-HKSO8-TP

Parametrics

ABSOLUTE MAXIMUM RATINGS:

  1. Voltage at VDD:-0.7 to 6 V
  2. Current in VDD: -10 to 150 mA
  3. Voltage at CI :-0.7 to 6 V
  4. Current in LDK DC current: -10 to 300 mA
  5. Current in AGND1 DC current: -150 to 10 mA
  6. Current in AGND2 DC current: -150 to 10 mA
  7. Voltage at EN1, EN2, AGND1 and AGND2:-0.7 to 6 V
  8. Voltage at LDK iC-HK: -0.7 to 6 V
  9. Susceptibility to ESD at all pins HBM, 100 pF discharged through 1.5 kΩ :1 kV
  10. Operating Junction Temperature: -40 to 150℃
  11. Storage Temperature Range: -40 to 150℃


Features

  1. Laser switch for frequencies from CW up to 155 MHz
  2. Spike-free switching of the laser current
  3. Dual switching inputs with independent current control
  4. Operates as a voltage-controlled current source
  5. Pulsed operation with up to 700 mA per channel
  6. CW operation with up to 150 mA per channel
  7. Simple power control at pin CI
  8. Control to the mean of the laser power in conjunction with iC-WK/L (CW laser diode driver)
  9. Supplement to iC-WK/L for pulsed operation
  10. Thermal shutdown
  11. Protective ESD circuitry
  12. iC-HKB for driving blue laser diodes
  13. Option: extended temperature range

Diagrams
