Product Summary
The EL8302 represents a triple rail-to-rail amplifier with a - 3dB bandwidth of 500MHz and slew rate of 600V/μs.Running off a very low supply current of 5.6mA per channel,the EL8302 also features inputs that go to 0.15V below the VS- rail.The EL8302 includes a fast-acting disable/power-down circuit. With a 25ns disable and a 200ns enable, the EL8302 is ideal for multiplexing applications.The EL8302 is designed for a number of general purpose video, communication, instrumentation, and industrial applications. The EL8302 is available in an 16-pin SO and 16-pin QSOP packages and is specified for operation over the -40℃ to +85℃ temperature range.
Parametrics
Absolute Maximum Ratings (TA = 25℃):
(1)Supply Voltage from VS+ to VS-:5.5V;
(2)Input Voltage:VS+ + 0.3V to VS- -0.3V;
(3)Differential Input Voltage:2V;
(4)Continuous Output Current:40mA;
(5)Power Dissipation:See Curves;
(6)Storage Temperature :-65℃ to +125℃;
(7)Ambient Operating Temperature:-40℃ to +85℃;
(8)Operating Junction Temperature:+125℃
Features
(1)500MHz -3dB bandwidth;
(2)600V/μs slew rate;
(3)Low supply current = 5.6mA per amplifier;
(4)Supplies from 3V to 5.5V;
(5)Rail-to-rail output;
(6)Input to 0.15V below VS-;
(7)Fast 25ns disable;
(8)Low cost;
(9)Pb-Free available (RoHS compliant)
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20128663033215.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

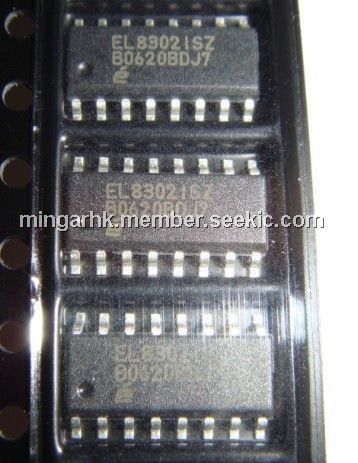

 EL8302ISZ |
|
IC AMP TRIPLE R-R 500MHZ 16-SOIC |
Data Sheet |
|
|
||||||
|
EL8302ISZ-T13 |
|
IC AMP TRIPLE R-R 500MHZ 16-SOIC |
Data Sheet |
|
|
||||||
|
EL8302ISZ-T7 |
|
IC AMP TRIPLE 500MHZ R-R 16-SOIC |
Data Sheet |
Negotiable |
|
||||||
