Product Summary

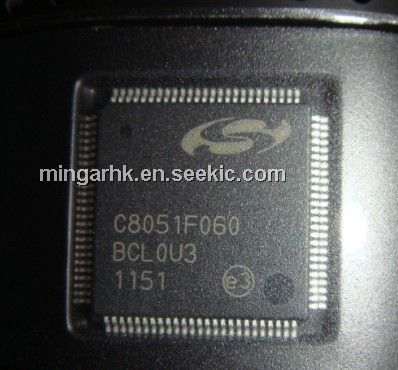

25 MIPS, 64 kB Flash, 16-Bit ADC, 100-Pin Mixed-Signal MCU
Parametrics
GLOBAL CHARACTERISTICS :
1.Supply Voltage:2.7V to 3.6 V
2.Supply Current (CPU active)
Clock = 25 MHz :18mA
Clock = 1 MHz :0.7mA
Clock = 32 kHz; VDD Monitor Enabled :20μA
3.Supply Current (shutdown) ,Oscillator not running; VDD Monitor Disabled :0.1 μA
4.Clock Frequency Range , DC : 25 MHz
Features
- Two 16-Bit ADCs
- 10-Bit ADC
- Two 12-Bit DACs
- Three Comparators
- Internal Voltage Reference
- Precision VDD Monitor/Brown-out Detector
- On-Chip JTAG Debug & Boundary Scan
- Supply Voltage: 2.7 to 3.6 V
- High-Speed 8051 μC Core
- Memory
- 64 kB Flash; in-system programmable in 1024-byte sectors (1024 bytes are reserved)
- External parallel data memory interface
11. CAN Bus 2.0B
12. Digital Peripherals
13. Clock Sources
14. 100-Pin TQFP
- Temperature Range: –40℃ to +85℃
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 C8051F060-GQR |
Silicon Labs |
8-bit Microcontrollers (MCU) 64KB 16ADC CAN 100P Tape and Reel |
