Product Summary

The AD9826 is a complete analog signal processor for imaging applications. It features a 3-channel architecture designed to
sample and condition the outputs of trilinear color CCD arrays.Each channel consists of an input clamp, Correlated Double
Sampler (CDS), offset DAC, and Programmable Gain Amplifier (PGA), multiplexed to a high-performance 16-bit A/D converter.
It can operate at speeds greater than 15 MSPS with reduced performance

Parametrics

ABSOLUTE MAXIMUM RATINGS:

  1. VIN, CAPT, CAPB, AVSS:-0.3V to AVDD + 0.3 V
  2. Digital Inputs ,AVS:-0.3V to AVDD + 0.3 V
  3. AVDD ,AVSS: -0.5V  to+6.5 V
  4. DRVDD ,DRVSS:-0.5V  to+6.5 V
  5. AVSS,DRVSS:-0.3V to +0.3 V
  6. Digital Outputs ,DRVSS :-0.3V to DRVDD + 0.3 V
  7. Junction Temperature: 150 ℃
  8. Storage Temperature:-65℃ to +150 ℃
  9. Lead Temperature(10Sec): 300℃


Features

  1. 16-Bit 15 MSPS A/D Converter
  2. 3-Channel 16-Bit Operation up to 15 MSPS
  3. 1-Channel 16-Bit Operation up to 12.5 MSPS
  4. 2-Channel Mode for Mono Sensors with Odd/Even Outputs
  5. Correlated Double Sampling
  6. 1~6 Programmable Gain
  7. 300 mV Programmable Offset
  8. Input Clamp Circuitry
  9. Internal Voltage Reference
  10. Multiplexed Byte-Wide Output
  11. Optional Single Byte Output Mode
  12. 3-Wire Serial Digital Interface
  13. 3 V/5 V Digital I/O Compatibility
  14. 28-Lead SSOP Package
  15. Low Power CMOS: 400 mW (Typ)
  16. Power-Down Mode Available

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

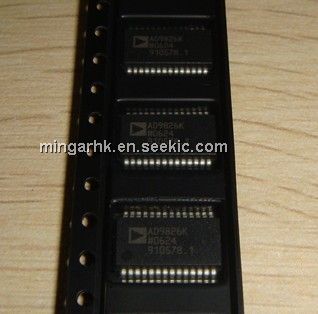

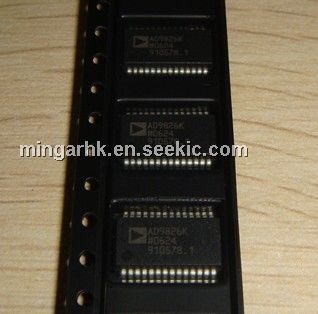

AD9826KRSZ
AD9826KRSZ

IC IMAGE SGNL PROC 16BIT 28-SSOP
Data Sheet
0-1: $6.70
1-10: $6.09
10-100: $5.18
100-250: $4.72
250-500: $4.42
500-1000: $4.06
AD9826KRSZRL
AD9826KRSZRL

IC IMAGE SGNL PROC 16BIT 28-SSOP
Data Sheet
0-1500: $4.06
