Product Summary

The AD820 is a precision, low power FET input op amp that can operate from a single supply of 5.0 V to 36 V, or dual supplies of ±2.5 V to ±18 V. It has true single-supply capability, with an input voltage range extending below the negative rail, allowing the AD820 to accommodate input signals below ground in the single-supply mode. Output voltage swing extends to within 10 mV of each rail, providing the maximum output dynamic range.

Parametrics

ABSOLUTE MAXIMUM RATINGS：

  1. Supply Voltage: ±18 V
  2. Internal Power Dissipation:Plastic DIP (N)=1.6 W ;SOIC (R) =1.0 W
  3. Input Voltage : (+VS + 0.2 V) to -(20 V + VS)
  4. Output Short-Circuit Duration:Indefinite
  5. Differential Input Voltage:±30 V
  6. Storage Temperature Range  :N, -65℃ to +125℃ ;R, -65℃ to +150℃
  7. Operating Temperature Range:-40℃ to +85℃
  8. Lead Temperature(Soldering 60 sec):260℃



Features

1.True single-supply operation
Output swings rail-to-rail
Input voltage range extends below ground
Single-supply capability from 5 V to 36 V
Dual-supply capability from ±2.5 V to ±18 V
2.Excellent load drive
Capacitive load drive up to 350 pF
Minimum output current of 15 mA
3.Excellent ac performance for low power
800 μA maximum quiescent current
Unity gain bandwidth: 1.8 MHz
Slew rate of 3.0 V/μs
4.Excellent dc performance
800 μV maximum input offset voltage
1 μV/℃ typical offset voltage drift
25 pA maximum input bias current
5.Low noise :13 nV/√Hz @ 10 kHz

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

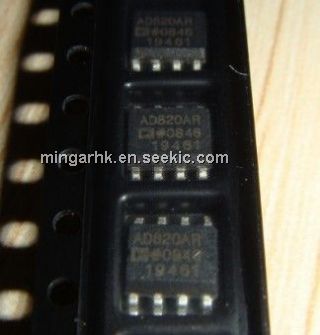

AD820ARZ
AD820ARZ

IC OPAMP JFET R-R 1.8MHZ 8SOIC
Data Sheet
0-1: $2.66
1-10: $2.38
10-100: $1.95
100-250: $1.76
250-500: $1.58
500-1000: $1.33
1000-2500: $1.27
AD820ARZ-REEL
AD820ARZ-REEL

IC OPAMP JFET R-R 1.8MHZ 8SOIC
Data Sheet
0-2500: $1.27
AD820ARZ-REEL7
AD820ARZ-REEL7

IC OPAMP JFET R-R 1.8MHZ 8SOIC
Data Sheet
Negotiable
