Product Summary

The AD8015 is a wide bandwidth, single supply transimpedance amplifier optimized for use in a fiber optic receiver circuit. It is a complete, single chip solution for converting photodiode current into a differential voltage output. The 240 MHz bandwidth enables AD8015 application in FDDI receivers and SONET/SDH receivers with data rates up to 155 Mbps. This high bandwidth supports data rates beyond 300 Mbps. The differential outputs
drive ECL directly, or can drive a comparator/ fiber optic post amplifier.

Parametrics

ABSOLUTE MAXIMUM RATINGS:

  1. Supply Voltage (+VS to –VS):12 V
  2. Internal Power Dissipation:Small Outline:0.9 Watts;Output Short Circuit Duration:Indefinite
  3. Maximum Input Current:10 mA
  4. Storage Temperature Range:-65℃ to +125℃
  5. Operating Temperature Range (TMIN to TMAX),AD8015ACHIP/AR:-40℃ to +85℃
  6. Maximum Junction Temperature:+165℃
  7. Lead Temperature Range (Soldering 10 sec):+300℃


Features

1.Low Cost, Wide Bandwidth, Low Noise
2.Bandwidth: 240 MHz
3.Pulse Width Modulation: 500 ps
4.Rise Time/Fall Time: 1.5 ns
 Input Current Noise: 3.0 pA/√Hz @ 100 MHz
 Total Input RMS Noise: 26.5 nA to 100 MHz
5.Wide Dynamic Range
  Optical Sensitivity: -36 dBm @ 155.52 Mbps
  Peak Input Current: ±350 mA
6.Differential Outputs:Low Power: 5 V @ 25 mA
7.Wide Operating Temperature Range: -40℃ to +85℃

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

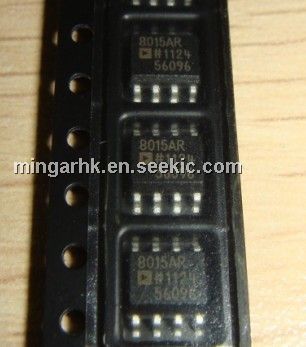

AD8015ARZ
AD8015ARZ

IC AMP TRANSIMPEDANCE 8-SOIC
Data Sheet
0-1: $4.59
1-10: $4.13
10-100: $3.40
100-250: $3.12
250-500: $2.85
500-1000: $2.48
1000-2500: $2.45
AD8015ARZ-REEL
AD8015ARZ-REEL
Analog Devices Inc
IC AMP TRANSIMPEDANCE 8 SOIC
Data Sheet
1-2500: $2.47
AD8015ARZ-REEL7
AD8015ARZ-REEL7

IC AMP TRANSIMPEDANCE 8-SOIC
Data Sheet
0-1000: $2.48
