Product Summary

The AD7934-6 is a 12-bit, high speed, low power, successive approximation (SAR) analog-to-digital converter (ADC). The part operates from a single 2.7 V to 5.25 V power supply and  features throughput rates up to 625 kSPS. The part contains a low noise, wide bandwidth, differential track-and-hold amplifier that handles input frequencies up to 50 MHz.

Parametrics

ABSOLUTE MAXIMUM RATINGS (TA = 25℃, unless otherwise noted.):

  1. VDD to AGND/DGND:-0.3 V to +7 V
  2. VDRIVE to AGND/DGND:-0.3 V to VDD +0.3 V
  3. Analog Input Voltage to AGND:-0.3 V to VDD + 0.3 V
  4. Digital Input Voltage to DGND:-0.3 V to +7 V
  5. VDRIVE to VDD:-0.3 V to VDD + 0.3 V
  6. Digital Output Voltage to DGND:-0.3V toVDRIVE + 0.3 V
  7. VREFIN to AGND:-0.3 V to VDD + 0.3 V
  8. AGND to DGND:-0.3 V to +0.3 V
  9. Input Current to Any Pin Except Supplies:±10 mA
  10. Operating Temperature Range,Commercial (B Version):-40℃ to +85℃
  11. Storage Temperature Range:-65℃ to +150℃
  12. Junction Temperature:150℃
  13. θJA Thermal Impedance:97.9℃/W (TSSOP)
  14. θJC Thermal Impedance:14℃/W (TSSOP)
  15. Lead Temperature, Soldering Reflow Temperature (10 sec to 30 sec):255℃
  16. ESD: 1.5 kV


Features

1.Throughput rate: 625 kSPS
2.Specified for VDD of 2.7 V to 5.25 V
3.Power consumption
    3.6 mW max at 625 kSPS with 3 V supplies
    7.5 mW max at 625 kSPS with 5 V supplies
4. 4 analog input channels with a sequencer
5.Software configurable analog inputs
   4-channel single-ended inputs
   2-channel fully differential inputs
   2-channel pseudo differential inputs
6.Accurate on-chip 2.5 V reference
  ±0.2% max @ 25°C, 25 ppm/°C max
7. 70 dB SINAD at 50 kHz input frequency
8.No pipeline delays
9.High speed parallel interface—word/byte modes
10.Full shutdown mode: 2 μA max
11.28-lead TSSOP package

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

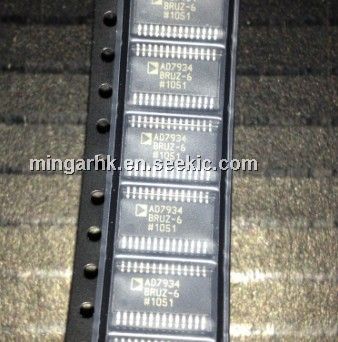

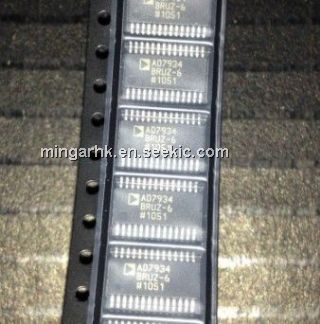

AD7934BRUZ-6
AD7934BRUZ-6

IC ADC 12BIT 4CH 625KSPS 28TSSOP
Data Sheet
0-50: $5.27
AD7934BRUZ-6REEL7
AD7934BRUZ-6REEL7

IC ADC 12BIT 4CH 625KSPS 28TSSOP
Data Sheet
0-1000: $3.47
