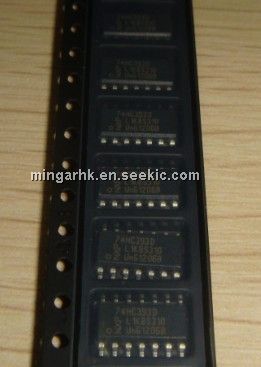

Product Summary

The 74HC/HCT393 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC
standard no. 7A.

Parametrics

QUICK REFERENCE DATA

GND = 0 V; Tamb = 25℃ ; tr =tf=6ns

  1. tPHL/ tPLH propagation delay,CL=15 pF; Vcc =5V,nCP to nQ0:12ns;nQ to nQn+1:5ns;nMR to nQn:11ns
  2. fmax,maximum clock frequency: 99MHz
  3. CI,input capacitance 3.5pF
  4. CPD,power dissipation capacitance per counter:23pF


Features

  1. Two 4-bit binary counters with individual clocks
  2. Divide-by any binary module up to 28 in one package
  3. Two master resets to clear each 4-bit counter individually
  4. Output capability: standard
  5. Icc category: MSI

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
74HC393D
74HC393D
NXP Semiconductors
Counter ICs DUAL 4-BIT BINARY RIPPLE COUNT
Data Sheet
Negotiable
74HC393D,652
74HC393D,652
NXP Semiconductors
Counter ICs DUAL 4-BIT BINARY
Data Sheet
0-1: $0.09
1-25: $0.08
25-100: $0.08
100-250: $0.07
74HC393D,653
74HC393D,653
NXP Semiconductors
Counter ICs 4BIT BIN RIP COUNTER DUAL
Data Sheet
0-1: $0.26
1-25: $0.22
25-100: $0.18
100-250: $0.15
74HC393DB,112
74HC393DB,112
NXP Semiconductors
Counter ICs DUAL 4-BIT BINARY
Data Sheet
0-1: $0.26
1-25: $0.22
25-100: $0.18
100-250: $0.15
74HC393DB
74HC393DB
NXP Semiconductors
Counter ICs DUAL 4-BIT BINARY RIPPLE COUNT
Data Sheet
Negotiable
74HC393DB,118
74HC393DB,118
NXP Semiconductors
Counter Shift Registers DUAL 4-BIT BINARY
Data Sheet
0-1: $0.10
1-25: $0.09
25-100: $0.08
100-250: $0.08
74HC393DB-T
74HC393DB-T
NXP Semiconductors
Counter ICs DUAL 4-BIT BINARY RIPPLE COUNT
Data Sheet
Negotiable
