Product Summary
High-Voltage Switching Applications
Parametrics
Absolute Maximum Ratings at Ta = 25℃:
(1)Collector-to-Base Voltage:1500V;
(2)Collector-to-Emitter Voltage:700V;
(3)Emitter-to-Base Voltage:5V;
(4)Collector Current:5A;
(5)Collector Current:10A;
(6)Base Curret:1A;
(7)Collector Dissipation:3.0W,at Tc=25℃:50W;
(8)Junction Temperature:150℃;
(9)Storage Temperature:-55℃ to +150℃
Features
(1)High speed (Adoption of MBIT process).;
(2)High breakdown voltage (VCBO=1500V).;
(3)High reliability (Adoption of HVP process).;
(4)On-chip damper diode.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

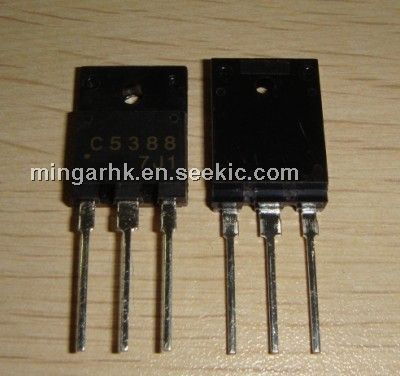

 2SC5388 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
