Product Summary

SIPMOS Power Transistor (N channel Enhancement mode Avalanche-rated)

Parametrics

Maximum Ratings:

  1. Continuous drain current,TC=33℃:8A
  2. Pulsed drain current,TC=25℃:32A
  3. Avalanche current,limited by Tjmax:8A
  4. Avalanche energy,periodic limited by Tjmax:13mJ
  5. Avalanche energy, single pulse,ID=8A, VDD=50V, RGS=25Ω,L=16.3 mH, Tj=25℃:570mJ
  6. Gate source voltage:±20V
  7. Power dissipation,TC=25℃:150W
  8. Operating temperature:-55℃ to +150℃
  9. Storage temperature:-55℃ to +150℃
  10. Thermal resistance, chip case:<0.83K/W
  11. hermal resistance, chip to ambient :75K/W
  12. DIN humidity category, DIN 40 040:E
  13. IEC climatic category, DIN IEC 68-1:55 / 150 / 56


Features

1. N channel
2. Enhancement mode
3. Avalanche-rated

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

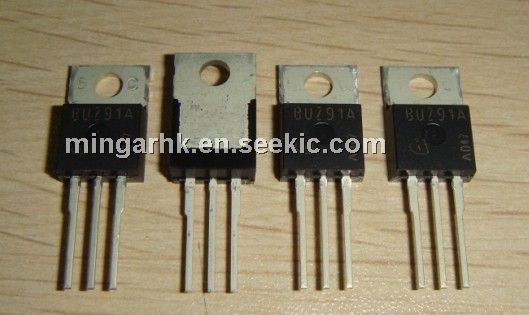

BUZ91A
