Product Summary

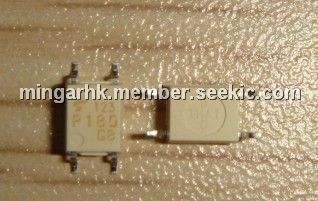

The TOSHIBA mini flat coupler TLP180 is a small outline coupler,suitable for surface mount assembly.It consist of a photo transistor, optically coupled to a galliumarsenide infrared emitting diode connected inverse parallel, and canoperate directly by AC input current.
Features
(1)Collector-emitter voltage: 80 V (min.); (2)Current transfer ratio: 50% (min.) ; (3)Rank GB: 100% (min.); (4)Isolation voltage: 3750Vrms (min.)
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/2012722758351.jpg">
 |
