Product Summary
This dual polarity tracking regulator is designed to provide balanced positive and negative output voltages at current up to 100 mA, and is set for ±15V outputs. Input voltages up to ±30V can be used and there is provision for adjustable current limiting. The device is available in two package types to accommodate various power requirements and temperature ranges.
Parametrics
Absolute Maximum Ratings:
(1)Input Voltage :±30V;
(2)Forced VO+ (Min):-0.5V;
(3)Forced VO- (Max):+0.5V;
(4)Power Dissipation :PMAX;
(5)Output Short-Circuit Duration:Continuous
Features
(1)±15V tracking outputs;
(2)Output current to 100 mA;
(3)Output voltage balanced to within 2%;
(4)Line and load regulation of 0.06%;
(5)Internal thermal overload protection;
(6)Standby current drain of 3 mA;
(7)Externally adjustable current limit;
(8)Internal current limit
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20128425453659.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

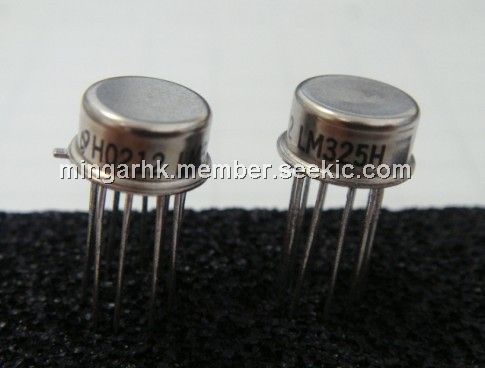

 LM325H |
National Semiconductor |
IC REG POS/NEG 15V TO-100 |
Data Sheet |
Negotiable |
|
||||||||||||
