Product Summary
The L9615 is a bidirectional transceiver for signal conditioning and processing in connection with a CAN controller. Data rates of up to 500KBAUD
are supported using either shielded or nonshielded pair of lines.
Parametrics
ABSOLUTE MAXIMUM RATINGS:
(1)VS, Supply Voltage: -0.3 to 7 V;
(2)VC_H, VC_L, Bus Voltage at C_H, C_L (VS 0 to 5.5V): -5 to 36 V;
(3)IC_H, IC_L, Off State Leakage Current at C_H, C_L ( VS =0 to 5.5V,VC_H = -5 to 36V, VC_L = -5 to 36 ):-3 to 5 mA;
(4)VDC, DC Voltage at TXO, ASC (VS 0 to 5.5V) :GND -0.3 to VS +0.3V;
(5)IRXO, Output Current at RXO (VS 0 to 5.5V): -0.3 to 1 mA;
(6)Tstg, TJ, Storage and Junction Temperature Range: -40 to 150 ℃;
(7)Top, Operating Temperature Range: -40 to 110℃
Features
(1)L9615 MEETS ISO/DIS 11898 UP TO 500KBAUD;
(2)TRANSMITTER:GENERATION OF DIFFERENTIAL OUTPUT;SIGNALS;SHORT CIRCUIT PROTECTED FROM -5V,TO 36V, DETECTION & SHUTDOWN;SLOPE CONTROL TO REDUCE RFI AND EMI;TWO STATES ADJUSTABLE SLOPE CONTROL(≤500KBAUD/≤125KBAUD);
(3)RECEIVER:DIFFERENZIAL INPUT WITH HIGH INTERFERENCE SUPPRESSION; COMMON MODE INPUT VOLTAGE RANGE (VCOM) FROM -2V TO Vs+3V;

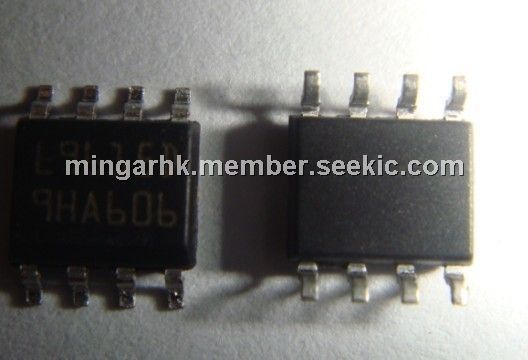

(4)PACKAGE: SO 8
Diagrams
<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/20128433216407.jpg">
