Product Summary

L6561 is the improved version of the L6560 standard Power Factor Corrector. Fully compatible with the standard version, it has a superior
performant multiplier making the device capable of working in wide input voltage range applications (from 85V to 265V) with an excellent THD.
Furthermore the start up current has been reduced at few tens of mA and a disable function has been implemented on the ZCD pin, guaranteeing lower current consumption in stand by mode.

Parametrics

ABSOLUTE MAXIMUM RATINGS:
(1)IVcc, PIN8, ICC + IZ: 30 mA;
(2)IGD, PIN7 Output Totem Pole Peak Current (2μs): ±700 mA;
(3)INV, COMP MULT,PIN1, 2, 3, Analog Inputs & Outputs :-0.3 to 7 V;
(4)CS ,PIN4 ,Current Sense Input:-0.3 to 7 V;
(5)ZCD,PIN 5, Zero Current Detector: 50mA (source);-10 (sink)mA;
(6)Ptot, Power Dissipation ,Tamb = 50℃ :(Minidip):1w;(SO8):0.65W;
(7)Tj, Junction Temperature Operating Range: -25 to 150℃;
(8)Tstg, Storage Temperature: -55 to 150℃

Features

(1)VERY PRECISE ADJUSTABLE OUTPUT OVERVOLTAGEPROTECTION;
(2)MICROPOWERSTART-UPCURRENT (50mATYP.);
(3)VERYLOW OPERATING SUPPLY CURRENT(4mA TYP.);
(4)INTERNAL START-UP TIMER;
(5)CURRENT SENSE FILTER ON CHIP;
(6)DISABLE FUNCTION;
(7)1% PRECISION (Tj = 25℃) INTERNAL REFERENCE VOLTAGE;
(8)TRANSITION MODE OPERATION;
(9)TOTEM POLE OUTPUT CURRENT: ±400mA;
(10)DIP8/SO8PACKAGES

Diagrams

<IMG border=0 src="http://www.seekic.com/uploadfile/ic-mfg/2012860572965.jpg">

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L6561DTR
L6561DTR
Other

Data Sheet
Negotiable

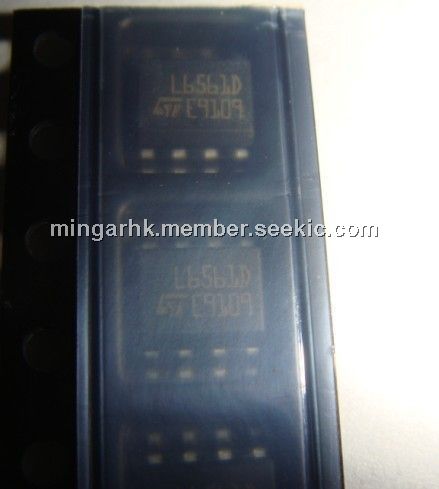

L6561D
L6561D
STMicroelectronics
Power Factor Correction ICs Wide Input Voltage
Data Sheet
Negotiable
L6561D013TR
L6561D013TR
STMicroelectronics
Power Factor Correction ICs Wide Input Voltage
Data Sheet
0-1: $0.56
1-10: $0.45
10-100: $0.39
100-250: $0.33
