Product Summary

The MAX 7000 family of high-density, high-performance PLDs is based on Altera’s second-generation MAX architecture.

Fabricated with advanced CMOS technology, the EEPROM-based MAX 7000 family provides 600 to 5,000 usable gates, ISP,

pin-to-pin delays as fast as 5 ns, and counter speeds of up to 175.4 MHz. MAX 7000S devices in the -5, -6, -7, and -10

 speed grades as well as MAX 7000 and MAX 7000E devices in -5, -6, -7, -10P, and -12P speed grades comply with the

PCI Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2.

Parametrics

Absolute Maximum Ratings:

VCC, Supply voltage, With respect to ground : -2.0 to 7.0 V
VI, DC input voltage: -2.0 to 7.0 V
IOUT, DC output current, per pin: -25 to 25 mA
TSTG, Storage temperature No bias :-65℃ to 150℃
TAMB, Ambient temperature Under bias: -65℃ to 150℃
TJ,Junction temperature Ceramic packages, under bias: 150℃
PQFP and RQFP packages, under bias: 135℃

Features

■ High-performance, EEPROM-based programmable logic devices (PLDs) based on second-generation MAX architecture

■ 5.0-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface

available in MAX 7000S devices

– ISP circuitry compatible with IEEE Std. 1532
■ Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices
■ Built-in JTAG boundary-scan test (BST) circuitry in MAX7000S devices with 128 or more macrocells
■ Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates (see Tables 1 and 2)
■ 5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies (including interconnect)
■ PCI-compliant devices available

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

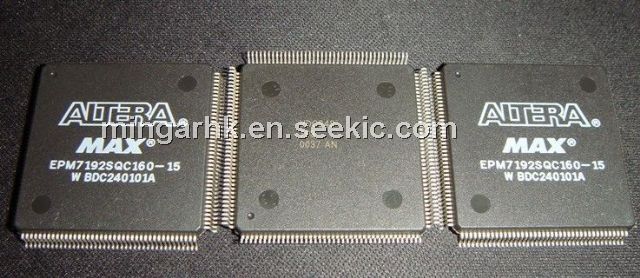

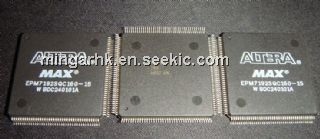

EPM7192SQC160-15
EPM7192SQC160-15

IC MAX 7000 CPLD 192 160-PQFP
Data Sheet
0-1: $31.50
EPM7192SQC160-15F
EPM7192SQC160-15F

IC MAX 7000 CPLD 192 160-PQFP
Data Sheet
Negotiable
EPM7192SQC160-15N
EPM7192SQC160-15N

IC MAX 7000 CPLD 192 160-PQFP
Data Sheet
0-1: $31.50
