Product Summary
The ADSP-2188M is a single-chip microcomputer optimized for digital signal processing (DSP) and other high speed numeric processing applications.
It combines the ADSP-2100 family base architecture (three computational units, data address generators and a program sequencer) with two serial ports, a 16-bit internal DMA port, a byte
DMA port, a programmable timer, Flag I/O, extensive interrupt capabilities, and on-chip program and data memory.
Parametrics
ABSOLUTE MAXIMUM RATINGS:
- Internal Supply Voltage (VDDINT): -0.3 V to +3.0 V
- External Supply Voltage (VDDEXT):-0.3 V to +4.6 V
- Input Voltage:-0.5 V to +4.6 V
- Output Voltage Swing:-0.5 V to VDDEXT + 0.5 V
- Operating Temperature Range (Ambient):-40℃ to+85℃
- Storage Temperature Range:-65℃ to+150℃
- Lead Temperature (5 sec) LQFP : +280℃
Features
- 12.5 ns Instruction Cycle Time @ 2.5 Volts (internal), 75 MIPS Sustained Performance
- Single-Cycle Instruction Execution
- Single-Cycle Context Switch
- 3-Bus Architecture Allows Dual Operand Fetches in Every Instruction Cycle
- Multifunction Instructions
- Powerdown Mode Featuring Low CMOS Standby Power Dissipation with 200 CLKIN Cycle Recovery from Powerdown Condition
- Low Power Dissipation in Idle Mode
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

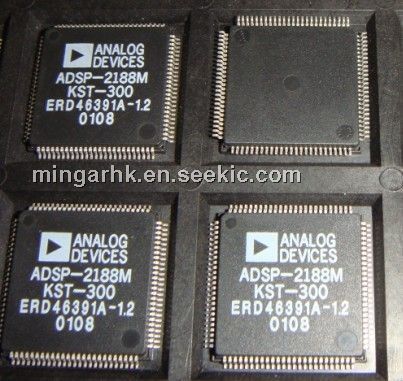

![]() ADSP-2188MKST-300 |
![]() Analog Devices Inc |
![]() IC DSP CONTROLLER 16BIT 100LQFP |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||||
![]() |
![]() ADSP-2100 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||
![]() |
![]() ADSP-2101BG-100 |
![]() |
![]() IC DSP CONTROLLER 16BIT 68PGA |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() ADSP-2101BGZ-100 |
![]() Analog Devices Inc |
![]() IC DSP 16BIT CTRL 25MHZ 68-PGA |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||||
![]() |
![]() ADSP-2101BP-100 |
![]() |
![]() IC DSP CONTROLLER 16BIT 68PLCC |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() ADSP-2101BPZ-100 |
![]() |
![]() IC DSP SLG 16BIT 25MHZ 68-PLCC |
![]() Data Sheet |
![]()
|
|
||||||||||||||
![]() |
![]() ADSP-2101BS-100 |
![]() Analog Devices Inc |
![]() IC DSP CONTROLLER 16BIT 80PQFP |
![]() Data Sheet |
![]() Negotiable |
|
