Product Summary

The ADG711, ADG712 and ADG713 are monolithic CMOS devices containing four independently selectable switches. These
switches are designed on an advanced submicron process that provides low power dissipation yet gives high switching speed,
low on resistance, low leakage currents and high bandwidth.

Parametrics

ABSOLUTE MAXIMUM RATINGS(TA = +25℃ unless otherwise noted)

  1. VDD to GND:-0.3 V to +6 V
  2. Analog, Digital Inputs:-0.3 V to VDD +0.3 V or 30 mA, Whichever Occurs First
  3. Continuous Current, S or D:30 mA
  4. Peak Current, S or D :100 mA(Pulsed at 1 ms, 10% Duty Cycle max)
  5. Operating Temperature Range,Industrial (B Version):-40℃ to +85℃
  6. Storage Temperature Range:-65℃ to +150℃
  7. Junction Temperature:+150℃
  8. TSSOP Package, Power Dissipation:430 mW
  9. θJA Thermal Impedance:150℃/W
  10. θJC Thermal Impedance :27℃/W
  11. SOIC Package, Power Dissipation:520 mW
  12. θJA Thermal Impedance :125℃/W
  13. θJC Thermal Impedance :42℃/W
  14. Lead Temperature, Soldering,Vapor Phase (60 sec):+215℃;Infrared (15 sec):+220℃
  15. ESD :2 kV


Features

  1. +1.8 V to +5.5 V Single Supply
  2. Low On Resistance (2.5 V Typ)
  3. Low On-Resistance Flatness
  4. –3 dB Bandwidth > 200 MHz
  5. Rail-to-Rail Operation
  6. 16-Lead TSSOP and SOIC Packages
  7. Fast Switching Times:tON   16 ns;tOFF  10 ns
  8. Typical Power Consumption (< 0.01 mW)
  9. TTL/CMOS Compatible

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

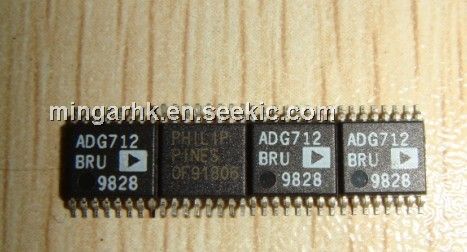

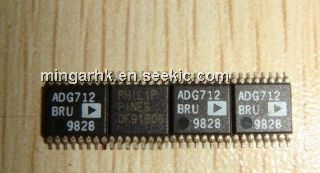

ADG712BRU
ADG712BRU

IC SWITCH QUAD SPST 16TSSOP
Data Sheet
0-192: $1.30
ADG712BRU-REEL
ADG712BRU-REEL

IC SWITCH QUAD SPST 16TSSOP
Data Sheet
0-2500: $0.84
ADG712BRU-REEL7
ADG712BRU-REEL7

IC SWITCH QUAD SPST 16TSSOP
Data Sheet
0-1000: $0.88
ADG712BRUZ
ADG712BRUZ

IC SWITCH QUAD SPST 16TSSOP
Data Sheet
0-1: $1.63
1-10: $1.47
10-100: $1.18
100-250: $1.05
250-500: $0.92
500-1000: $0.76
1000-2500: $0.71
2500-5000: $0.70
ADG712BRUZ-REEL
ADG712BRUZ-REEL

IC SWITCH QUAD SPST 16TSSOP
Data Sheet
0-2500: $0.71
ADG712BRUZ-REEL7
ADG712BRUZ-REEL7

IC SWITCH QUAD SPST 16TSSOP
Data Sheet
0-1000: $0.76
