Product Summary

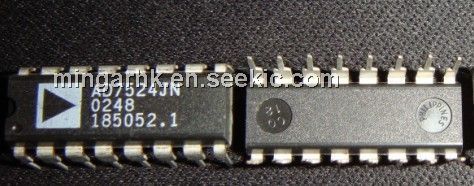

The AD7524 is a low cost, 8-bit monolithic CMOS DAC designed for direct interface to most microprocessors.Basically an 8-bit DAC with input latches, the AD7524’s load cycle is similar to the “write” cycle of a random access memory. Using an advanced thin-film on CMOS fabrication process, the AD7524 provides accuracy to 1/8 LSB with a typical power dissipation of less than 10 milliwatts.

Parametrics

ABSOLUTE MAXIMUM RATINGS:(TA = +25, unless otherwise noted)

(1)VDD to GND:-0.3 V, +17 V;

(2)VRFB to GND:±25 V;

(3)VREF to GND:±25 V;

(4)Digital Input Voltage to GND:-0.3 V to VDD +0.3 V;

(5)OUT1, OUT2 to GND:-0.3 V to VDD +0.3 V;

(6)Power Dissipation (Any Package):To +75℃: 450 mW;Derates above 75℃ by :6 mW/℃;

(7)Operating Temperature:Commercial (J, K, L):-40℃ to +85℃;Industrial (A, B, C):-40℃ to +85℃;Extended (S, T, U):-55℃ to +125℃;

(8)Storage Temperature:-65℃ to +150℃;

(9)Lead Temperature (Soldering, 10 secs):+300℃

Features

  1. Microprocessor Compatible (6800, 8085, Z80, Etc.)
  2. TTL/CMOS Compatible Inputs
  3. On-Chip Data Latches
  4. Endpoint Linearity
  5. Low Power Consumption
  6. Monotonicity Guaranteed (Full Temperature Range)
  7. Latch Free (No Protection Schottky Required)

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AD7524JN
AD7524JN


IC DAC 8BIT MULTIPLYING 16-DIP

Data Sheet

0-50: $4.83
AD7524JNZ
AD7524JNZ


IC DAC 8BIT MULTIPLYING 16-DIP

Data Sheet

0-1: $5.09
1-25: $4.17
25-100: $3.77
100-250: $3.46
250-500: $3.16
500-1000: $2.75
1000-2500: $2.71
