Product Summary

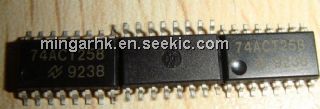

The ACT258 is a quad 2-input multiplexer with 3-STATE outputs. Four bits of data from two sources can be selected using a common data select input. The four outputs
present the selected data in the complement (inverted) form. The outputs may be switched to a high impedance state with a HIGH on the common Output Enable (OE) input, allowing the outputs to interface directly with bus-oriented systems.
Parametrics
Absolute Maximum Ratings:
(1)Supply Voltage (VCC):-0.5V to +7.0V;
(2)DC Input Diode Current (Iik):VI=-0.5V,20 mA;VI=Vcc+0.5V ,+20mA;
(3)DC Input Voltage (VI):-0.5V to Vcc+0.5V;
(4)DC Output Diode Current (Iok),VO=-0.5V:20 mA;Vo=Vcc+0.5V:+20 mA;
(5)DC Output Voltage (Vo):-0.5V to Vcc+0.5V;
(6)DC Output Source or Sink Current (Io) :±50 mA;
(7)DC VCC or Ground Current per Output Pin (Icc or IGND):±50 mA;
(8)Storage Temperature (TSTG):-65℃ to +150℃;
(9)Junction Temperature (TJ):PDIP =140℃
Features
(1)Icc and Ioz reduced by 50%;
(2)Multiplexer expansion by tying outputs together;
(3)Inverting 3-STATE outputs;
(4)Outputs source/sink 24 mA;
(5)TTL-compatible inputs
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 74ACT258MTCX |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers Qd 2-Inp Multiplexer |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74ACT258PC |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers Qd 2-Inp Multiplexer |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74ACT258SC |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers Qd 2-Inp Multiplexer |
Data Sheet |
|
|
||||||||||||
|
74ACT258SC_Q |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers Qd 2-Inp Multiplexer |
Data Sheet |
Negotiable |
|
||||||||||||
 |
74ACT258SJ |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers Qd 2-Inp Multiplexer |
Data Sheet |
Negotiable |
|
||||||||||||
|
74ACT258SJ_Q |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers Qd 2-Inp Multiplexer |
Data Sheet |
Negotiable |
|
||||||||||||
|
74ACT258SJX |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers Q2-input Multiplexer 3State Output |
Data Sheet |
Negotiable |
|
||||||||||||
|
74ACT258SCX |
Fairchild Semiconductor |
Encoders, Decoders, Multiplexers & Demultiplexers Qd 2-Inp Multiplexer |
Data Sheet |
Negotiable |
|
||||||||||||
