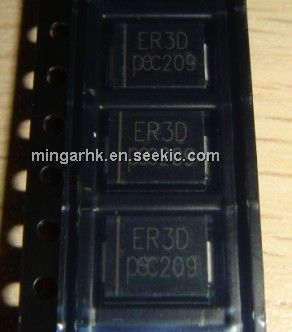

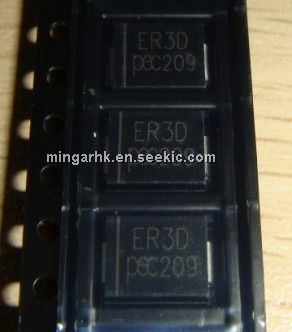

Product Summary

MECHANICAL DATA:
Case: JEDEC DO-214AB molded plastic
Terminals: Solder plated, solderable per MIL-STD-750,
Method 2026
Polarity: Indicated by cathode band
Standard packaging: 12mm tape (EIA-481)
Weight: 0.007 ounce, 0.21 gram

Parametrics

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS:

  1. Maximum Recurrent Peak Reverse Voltage:200V
  2. Maximum RMS Voltage:140V
  3. Maximum DC Blocking Voltage:200V
  4. Maximum Average Forward  Rectified Currentat TL=75℃:3.0A
  5. Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load (JEDEC method):100A
  6. Maximum Instantaneous Forward Voltage at 3.0A:0.95V
  7. Maximum DC Reverse Current TA=25℃:5.0μA;at Rated DC Blocking Voltage TA=125℃:00μA
  8. Maximum Reverse Recovery:35ns
  9. Typical Junction Capacitance :45pf
  10. Maximum Thermal Resistance,RθJA:16°C/W
  11. Operating and Storage Temperature Range:-55 to +150℃


Features

? For surface mounted applications
? High temperature metallurgically bonded-no compression contacts as found in other diode-constructed rectifiers
? Glass passivated junction
? Built-in strain relief
? Easy pick and place
? Plastic package has Underwriters Laboratory Flammability Classification 94V-O
? Complete device submersible temperature of 260°C for 10 seconds in solder bath

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ER3D
ER3D

Other


Data Sheet

Negotiable
ER3DB
ER3DB

Other


Data Sheet

Negotiable
ER3DB-TP
ER3DB-TP


DIODE SUPER FAST 3A 200V SMB

Data Sheet

0-1: $0.35
1-10: $0.27
10-25: $0.23
25-100: $0.19
100-250: $0.16
250-500: $0.13
500-1000: $0.10
ER3D-TP
ER3D-TP


DIODE SUPER FAST 3A 200V SMC

Data Sheet

0-1: $0.42
1-10: $0.34
10-100: $0.25
100-250: $0.22
250-500: $0.19
500-1000: $0.15
