Product Summary

Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieveextremely low

on-resistance per silicon area.  This benefit, combined with the fast switching speed and ruggedized device design that

HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use

in a wide variety of applications.

Parametrics

Absolute Maximum Ratings:
  1. Continuous Drain Current,TC=25℃, VGS @ -10V:-74A
  2. Continuous Drain Current, TC=100℃,VGS @ -10V:-52A
  3. Pulsed Drain Current:-260A
  4. Power Dissipation,TC=25℃:200W
  5. Linear Derating Factor:1.3W/℃
  6. Gate-to-Source Voltage:±20V
  7. Single Pulse Avalanche Energy:930mJ
  8. Avalanche Current:-38A
  9. Repetitive Avalanche Energy:20mJ
  10. Peak Diode Recovery dv/dt:-5.0V/ns
  11. Operating Junction and Storage Temperature Range:-55 to+175℃;Soldering Temperature, for 10 seconds 300℃ (1.6mm from case )

Features

  1.  Advanced Process Technology
  2.  Ultra Low On-Resistance
  3.  Dynamic dv/dt Rating
  4.  175℃ Operating Temperature
  5.  Fast Switching
  6.  P-Channel
  7.  Fully Avalanche Rated
  8.  Lead-Free

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

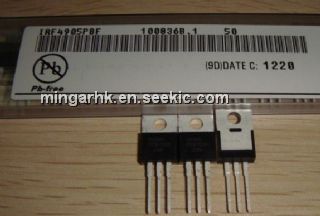

IRF4905PBF
IRF4905PBF
International Rectifier
MOSFET MOSFT PCh -55V -74A 20mOhm 120nC
Data Sheet
0-1: $2.39
1-25: $1.55
25-100: $1.12
100-250: $1.04
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRF4104SPBF
IRF4104SPBF
International Rectifier
MOSFET
Data Sheet
0-400: $0.81
400-500: $0.78
500-1000: $0.74
IRF4905PBF
IRF4905PBF
International Rectifier
MOSFET MOSFT PCh -55V -74A 20mOhm 120nC
Data Sheet
0-1: $2.39
1-25: $1.55
25-100: $1.12
100-250: $1.04
IRF4905LPBF
IRF4905LPBF
International Rectifier
MOSFET MOSFT PCh -55V -74A 20mOhm 120nC
Data Sheet
0-1: $2.17
1-25: $1.49
25-100: $1.10
100-250: $1.06
IRF4905
IRF4905
International Rectifier
MOSFET MOSFET, P-CHANNEL, -55V, -74A, 20 mOhm, 120 nC Qg, TO-220AB
Data Sheet
Negotiable
IRF46ER272K
IRF46ER272K
Vishay/Dale
Power Inductors 2.7Kohms 10%
Data Sheet
0-1: $0.13
1-50: $0.11
50-100: $0.09
100-500: $0.08
IRF46ER333K
IRF46ER333K
Vishay/Dale
Power Inductors 33Kohms 10%
Data Sheet
0-5500: $0.07
5500-6000: $0.06
6000-9000: $0.06
9000-12000: $0.06
