Product Summary
Available in high power packages, the BTA/BTB40-41 series is suitable for general purpose AC switching. They can be used as an ON/OFF
function in applications such as static relays, heating regulation, induction motor starting circuits or for phase control operation in light dimmers, motor
speed controllers.
Parametrics
Absolute Maximum Ratings:
- RMS on-state current(full sine wave),RD91 / TOP3, Tc=95℃:40 A
- Non repetitive surge peak on-state current (full cycle,Tj initial=25℃),F =50Hz, t=20ms:400A;F=60Hz,t=16.7ms:420A
- I2t Value for fusing ,tp=10 ms: 880 A2S
- Critical rate of rise of on-state current IG = 2 x IGT ,tr≤ 100 ns,
- F=120 Hz,Tj=125℃ :50 A/μs
- Non repetitive surge peak off-state voltage,tp=10ms,Tj=25℃:VDSM/VRSM+ 100V
- Peak gate current,tp=20 μs,Tj=125℃:8 A
- Average gate power dissipation,Tj=125℃:1 W
- Storage junction temperature range:- 40℃ to + 150℃
- Operating junction temperature range:- 40℃ to + 125℃
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

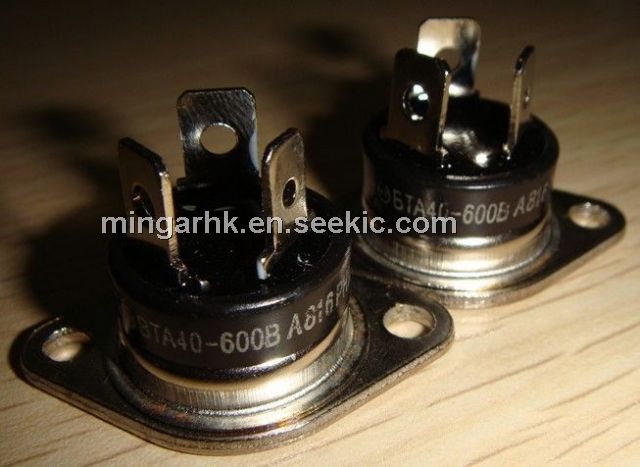

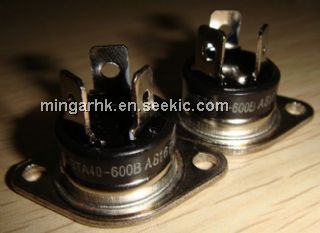

![]() BTA40-600B |
![]() STMicroelectronics |
![]() Triacs 40 Amp 600 Volt |
![]() Data Sheet |
![]()
|
|
||||||||||||
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
![]() |
![]() BTA40 |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() BTA40 A |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() BTA40 B |
![]() Other |
![]() |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() BTA40-400B |
![]() STMicroelectronics |
![]() Triacs 40A STANDARD TRIACS |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() BTA40-600B |
![]() STMicroelectronics |
![]() Triacs 40 Amp 600 Volt |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() BTA40-700B |
![]() STMicroelectronics |
![]() Triacs 40 Amp 700 Volt 50mA TRIAC |
![]() Data Sheet |
![]()
|
|
