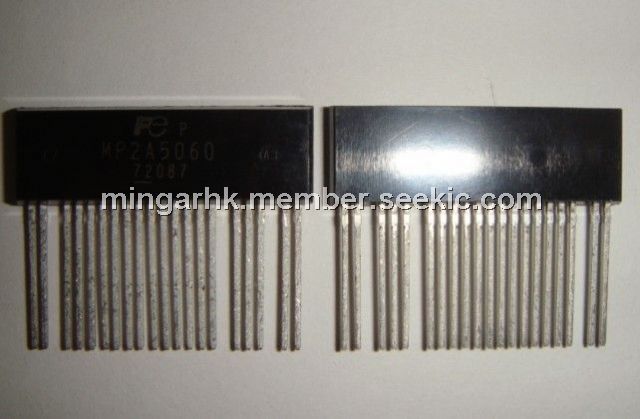

Product Summary
Features
(1)High efficiency, low noise
Two-MOSFET (Q1, Q2) soft switching operation
Low-noise secondary-side diode (No surge voltage at reverse recovery)
Multi-oscillation means limited increase in frequency for light loads (Frequency increase of 20% of rated load for rated 10% load) and limited reactive power of transformer magnetizing current.
(2)Fail-safe design: It is easy to construct a fail-safe power supply system.
Protection functions with latch shutdown: Over current (OC), over voltage (OV), and over heating (OH).
Diagrams
