Product Summary

The AD627 is an integrated, micropower instrumentation amplifier that delivers rail-to-rail output swing on single and dual (+2.2 V to ±18 V) supplies. The AD627 provides excellent  ac and dc specifications while operating at only 85 μA maximum.

Parametrics

ABSOLUTE MAXIMUM RATINGS:

  1. Supply Voltage:±18 V
  2. Internal Power Dissipation:PDIP (N-8)= 1.3 W ;SOIC_N (R-8)=0.8 W
  3. -IN, +IN: -VS-20 V to +VS + 20 V
  4. Common-Mode Input Voltage:-VS-20 V to +VS + 20 V
  5. Differential Input Voltage (+IN -(-IN)) : +VS - (-VS)
  6. Output Short-Circuit Duration : Indefinite
  7. Storage Temperature Range (N, R) :-65℃ to +125℃
  8. Operating Temperature Range :-40℃ to +85℃
  9. Lead Temperature (Soldering, 10 sec):300℃


Features

1.Micropower, 85 μA maximum supply current
2.Wide power supply range (+2.2 V to ±18 V)
3.Easy to use
Gain set with one external resistor
Gain range 5 (no resistor) to 1000
4.Higher performance than discrete designs
5.Rail-to-rail output swing
6.High accuracy dc performance
0.03% typical gain accuracy (G = +5) (AD627A)
10 ppm/℃ typical gain drift (G = +5)
125 μV maximum input offset voltage (AD627B dual supply)
200 μV maximum input offset voltage (AD627A dual supply)
1 μV/℃ maximum input offset voltage drift (AD627B)
3 μV/℃maximum input offset voltage drift (AD627A)
10 nA maximum input bias current
7.Noise: 38 nV/√Hz RTI noise @ 1 kHz (G = +100)
8.Excellent ac specifications
AD627A: 77 dB minimum CMRR (G = +5)
AD627B: 83 dB minimum CMRR (G = +5)
80 kHz bandwidth (G = +5)
135 μs settling time to 0.01% (G = +5, 5 V step)

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

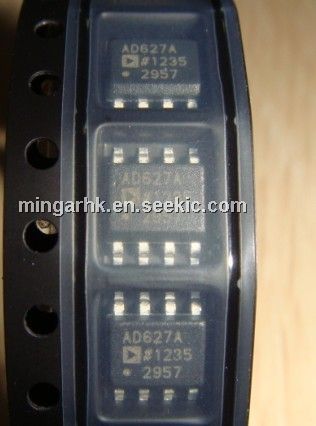

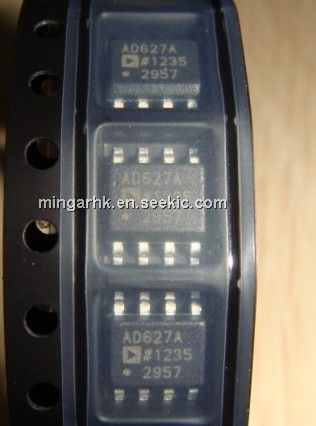

AD627ARZ
AD627ARZ

IC AMP INST R-R 25MA 8SOIC
Data Sheet
0-1: $3.62
1-10: $3.26
10-100: $2.68
100-250: $2.46
250-500: $2.24
500-1000: $1.95
1000-2500: $1.93
AD627ARZ-R7
AD627ARZ-R7

IC AMP INST R-R 25MA 8SOIC
Data Sheet
0-1000: $1.95
1000-2000: $1.93
AD627ARZ-RL
AD627ARZ-RL

IC AMP INST R-R 25MA 8SOIC
Data Sheet
0-2500: $1.93
