Product Summary

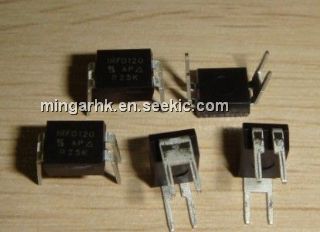

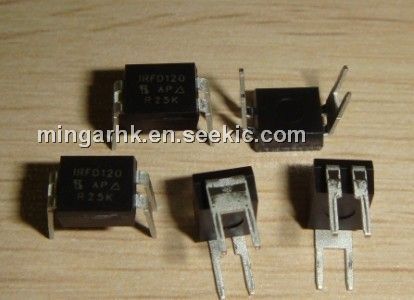

IRFD120PBF

Parametrics

Absolute Maximum Ratings:

  1. Continuous Drain Current, VGS @10V,Ta=25℃:1.3A
  2. Continuous Drain Current, VGS @10V,Ta=100℃:0.949A
  3. Pulsed Drain Current:10A
  4. Power dissipatiom:1.3W
  5. Linear derationg factor:0.0063W/℃
  6. Gate-to-source Voltage:±20V
  7. Single Pulse Avalanche Energy:100mJ
  8. Avalanche Current:1.3A
  9. Repetitive Avalanche Energy:0.13mJ
  10. Peak Diode Recovery dv/dt:5.5V/ns
  11. Operating Junction and Storage Temperature Range:-55 to+175℃


Features

  1. Dynamic dv/dt Rating
  2. Repetitive avalanche rated
  3. For automatic Insertion
  4. End stackable
  5. 175℃ Operating Temperature
  6. Fast switching
  7. Ease of paralleling
  8. Lead-Free

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFD120PBF
IRFD120PBF
Vishay Semiconductors
MOSFET 100V Single N-Channel HEXFET
Data Sheet
0-1: $0.58
1-10: $0.44
10-100: $0.38
100-250: $0.34
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFD020
IRFD020
Vishay/Siliconix
MOSFET N-Chan 50V 2.4 Amp
Data Sheet
0-1800: $1.09
1800-2500: $1.02
2500-5000: $1.01
IRFD024
IRFD024
Vishay/Siliconix
MOSFET N-Chan 60V 2.5 Amp
Data Sheet
0-1800: $1.09
1800-2500: $1.02
2500-5000: $1.01
IRFD220PBF
IRFD220PBF
Vishay Semiconductors
MOSFET N-Chan 200V 0.8 Amp
Data Sheet
0-1: $0.60
1-10: $0.44
10-100: $0.31
100-250: $0.28
IRFD120PBF
IRFD120PBF
Vishay Semiconductors
MOSFET 100V Single N-Channel HEXFET
Data Sheet
0-1: $0.58
1-10: $0.44
10-100: $0.38
100-250: $0.34
IRFD210PBF
IRFD210PBF
Vishay Semiconductors
MOSFET N-Chan 200V 0.6 Amp
Data Sheet
0-1: $0.55
1-10: $0.44
10-100: $0.38
100-250: $0.34
IRFD120
IRFD120
Vishay Semiconductors
MOSFET 100V Single N-Channel HEXFET
Data Sheet
0-1: $1.33
1-10: $1.15
10-50: $1.10
50-100: $0.98
