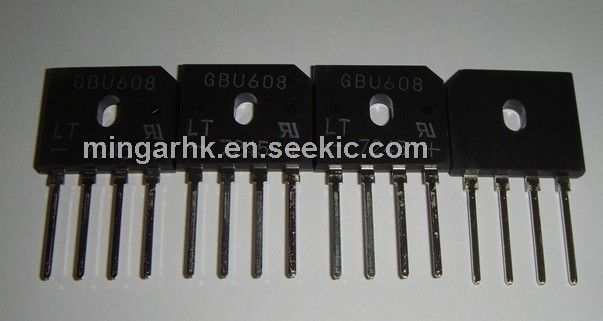

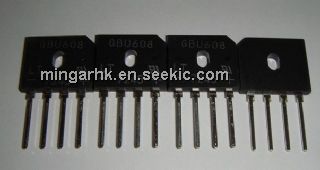

Product Summary

Mechanical Data:

  1. Case: Molded Plastic
  2. Terminals: Plated Leads Solderable per MIL-STD-202, Method 208
  3. Polarity: Marked on Body
  4. Mounting: Through Hole for #6 Screw
  5. Mounting Torque: 5.0 Inch-pounds Maximum
  6. Marking: Date Code and Type Number
  7. Weight: 6.6 grams (approx.)


Parametrics

Maximum Ratings:

  1. Peak Repetitive Reverse Voltage:800V
  2. Working Peak Reverse Voltage:800V
  3. DC Blocking Voltage:800V
  4. RMS Reverse Voltage:560V
  5. Average Rectified Output Current (Note 1) @TC=100℃:6.0A
  6. Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load(JEDEC Method):175A
  7. Forward Voltage (per element)@ IF=3.0A:1.0V
  8. Peak Reverse Current @TC=25℃:5.0μA;at Rated DC Blocking Voltage @TC=125℃:500μA
  9. I2t Rating for Fusing (t < 8.3ms):127A2S
  10. Typical Junction Capacitance per Element:100pF
  11. Typical Thermal Resistance Junction to Case:2.2°C/W
  12. Operating and Storage Temperature Range:-55 to +150℃


Features

  1. Glass Passivated Die Construction
  2. High Case Dielectric Strength of 1500VRMS
  3. Low Reverse Leakage Current
  4. Surge Overload Rating to 175A Peak
  5. Ideal for Printed Circuit Board Applications
  6. Plastic Material: UL Flammability Classification Rating 94V-0
  7. UL Listed Under Recognized Component Index, File Number E94661

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
GBU608
GBU608
Diodes Inc.
Bridge Rectifiers 6.0A 800V
Data Sheet
0-1: $1.01
1-10: $0.84
10-100: $0.71
100-250: $0.59
GBU608-G
GBU608-G

RECTIFIER BRIDGE 6A 800V GBU
Data Sheet
0-1000: $0.31
